Autool SDT103 Smoke Machine Automotive - Essential for Engine Diagnostics
Why you need it :
- Prevent thick mixtures, high idle speed, and poor hot starts due to vacuum hose ruptures.
- Avoid drifting idle speed and stalling caused by blockages.
- Ensure optimal engine performance by detecting air leakage in the vacuum tube.

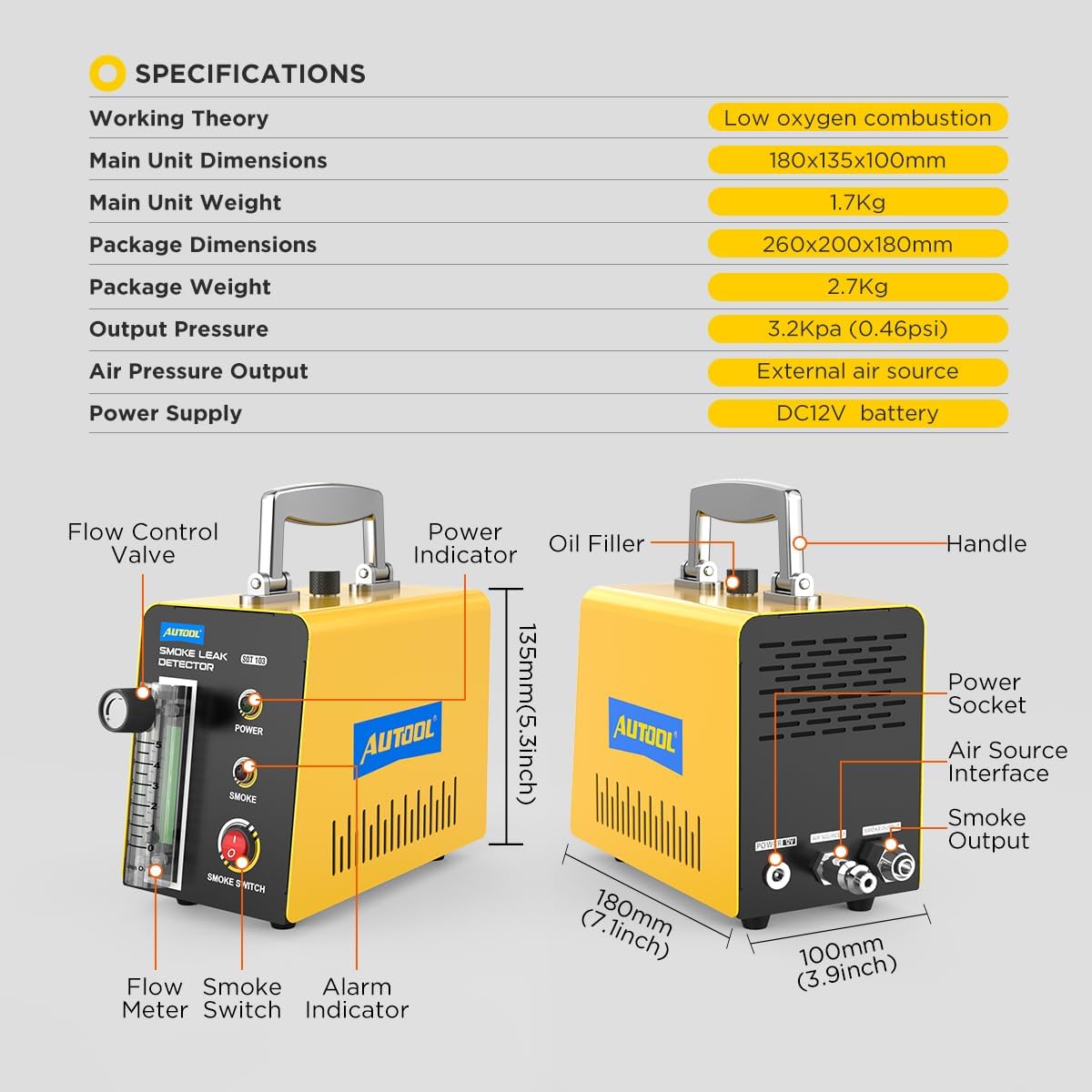

- No Air Pump Required: Connect to shop air supply and 12V vehicle power for easy operation.
- External Flow Meter: Safely control air pressure to prevent damage or undetected leaks.
- EVAP Detection: Ideal for American cars since 1996, with an adaptable EVAP service port for efficient leak detection.
Our delivery commitment ensures that your order will be shipped within a 2-day timeframe !
Additionally, we provide a hassle-free return and replacement service at no extra cost !
Wide Testing Range :
- Suitable for testing various systems including EVAP, Intake, Cooling/EGR/Exhaust, Crankcase, Engine Airtightness, and more.
- Applicable to cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats.
Why AUTOOL ?
-
Established in 2014, AUTOOL is a Shenzhen-based high-tech company specializing in automotive maintenance and diagnostic products.
-
Nationally recognized in 2020 and ISO 9001 certified in 2023, AUTOOL is dedicated to providing global automotive solutions.
-
Known for durable materials, revolutionary innovation, and a diverse product range, AUTOOL has earned international certifications like CE, FCC, and ROHS.
-
146 patented inventions, 168 professional certifications, and a meticulous 35-step production process ensure top-notch quality.
-
A robust 3-year Product Quality Promise reinforces our commitment to after-sales support.
-
Our experienced team, with over 15 years in the industry, drives innovation and understands user needs.
-
Present in 160 countries, AUTOOL invites you to join in creating the legendary brand with a warm yellow and mysterious black identity.
-
Upholding the business philosophy of responsibility and reliability, AUTOOL promises user-friendly and advantageous solutions for a legendary automotive journey.
Why detecting leaks in the automotive EVAP system is suggested?
With the implementation of international emission standards represented by CARB LEV III and EURO 6 and the requirement of an on-board diagnostic system, it is necessary for vehicles to have an on-board diagnostic function for small leakage (referring to 0.5mm or 1mm aperture) emission of EVAP system. Compared to cars without on-board diagnostic requirements, the frequency of EVAP system leak alarms will increase, so there will be a corresponding increase in demand for owners to enter service stations for EVAP system leak detection. For the special service stations of vehicle companies, a professional EVAP leak inspection and special tools or equipment for locating leak points are highly recommended, and our AUTOOL SDT 103 Automotive EVAP Leak Detector is a perfect tool for EVAP system inspection and repair.
Why do customers need AUTOOL SDT103 automotive smoke machine?
The AUTOOL SDT103 Automotive Smoke Leak Detector can assist service technicians in leak detection testing. The AUTOOL SDT103 Automotive Smoke Leak Detector can assist service technicians in leak detection testing. Leak detection is the most basic but absolutely essential test in the automotive repair process. The SDT 103 Automotive Smoke Leak Detector is capable of outputting a constant standard test pressure of 32 mbar required by automotive EVAP systems through precise pressure regulation of the external air source, which can output smoke within seconds and can find leak holes as small as 0.5mm.
Full system diagnostics, don't miss any leaks.
Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.
Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.
Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.
Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.
Turbo Test: The leakage of coolant would cause the engine to report high water temperature.Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.
EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.
Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust.
How to do leak detection?
1.Fill 10ml-20ml test oil into the smoke leak detector.Disconnect the car pipelines that need to be connected to the smoke leak detector.
2.Connect the adapted quick interface to the automobile pipeline that needs to be tested.Connect an external air supply to the air inlet of the smoke leak detector.
3. Connect the smoke leak detector to the DC12V battery, and the device starts to work.Turn on the smoke switch, and smoke will be generated in about 5 seconds.
4. Connecting to the detected vehicle pipeline will soon be filled with smoke, which is convenient for locating the leak point.
Wide Range of Applications :
AUTOOL SDT103 Car Smoke Leak Detector is a professional auto pipe leak detect tool and without air pump.It will help us position cars motorcycles leakage on pipe system quickly and exactly,is used to detect leaks in piping systems in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks and speed boats, suitable for all models(only for 12v DC). For non-professionals, many users may worry about its utility value because they do not use it very often and maybe only once for a long time, so is it worth spending so much money? Yes, you can also use it for your friends or neighbors, or even rent it out to earn extra income.

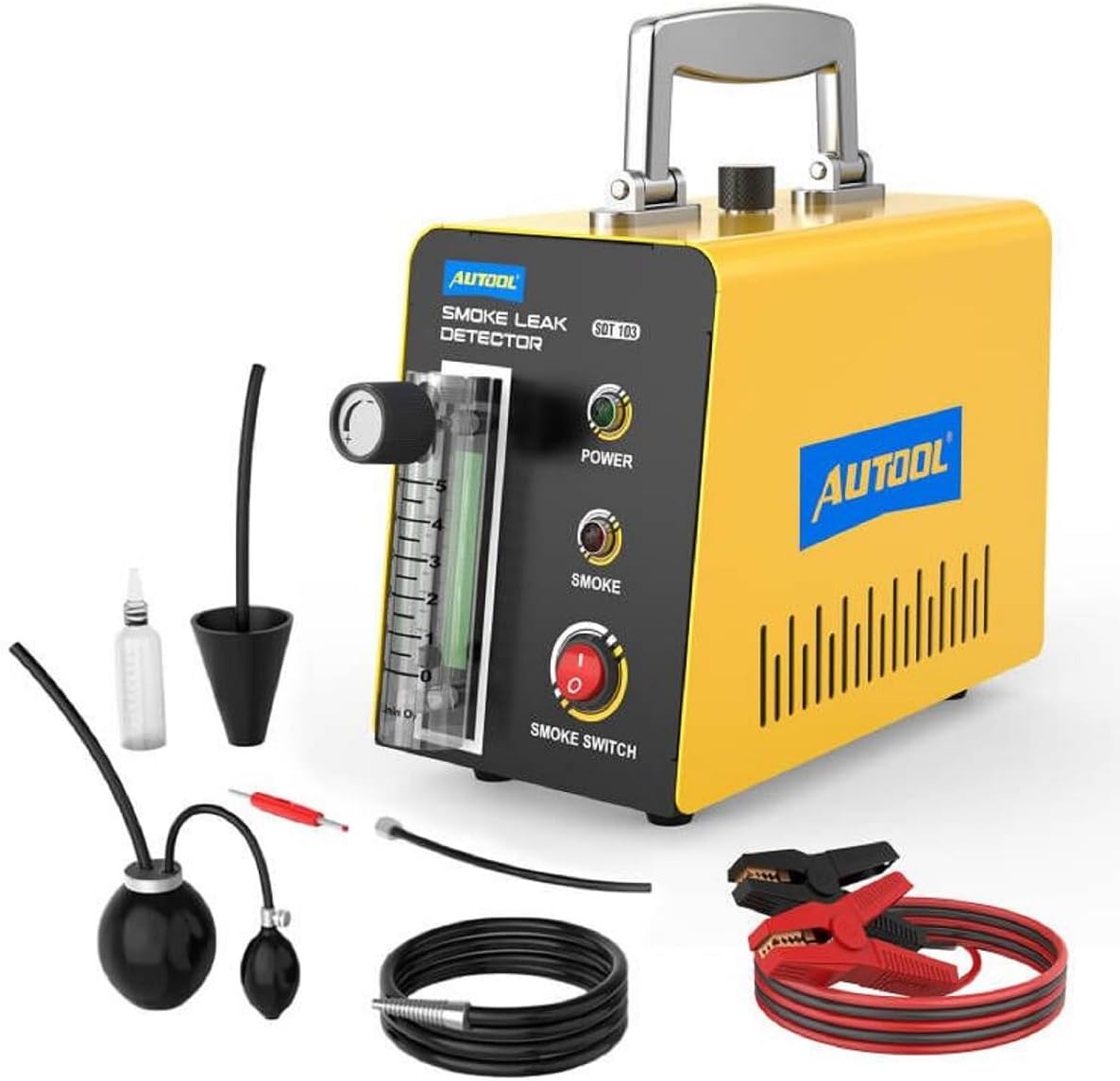

Packing list :
- 1pc * AUTOOL SDT103 Main Unit.
- 1pc * Power cord clip.
- 1pc * Valve Core Wrench.
- 1pc * Test Oil Refill Bottle(Oil not included)
- 1pc * EVAP test interface adapter.
- 1pc * Smoke Hose.
- 1pc * Instruction Manual.
